AIR CHILLER
AIR CHILLER

Efficient Industrial Cooling with Low Maintenance and High Reliability

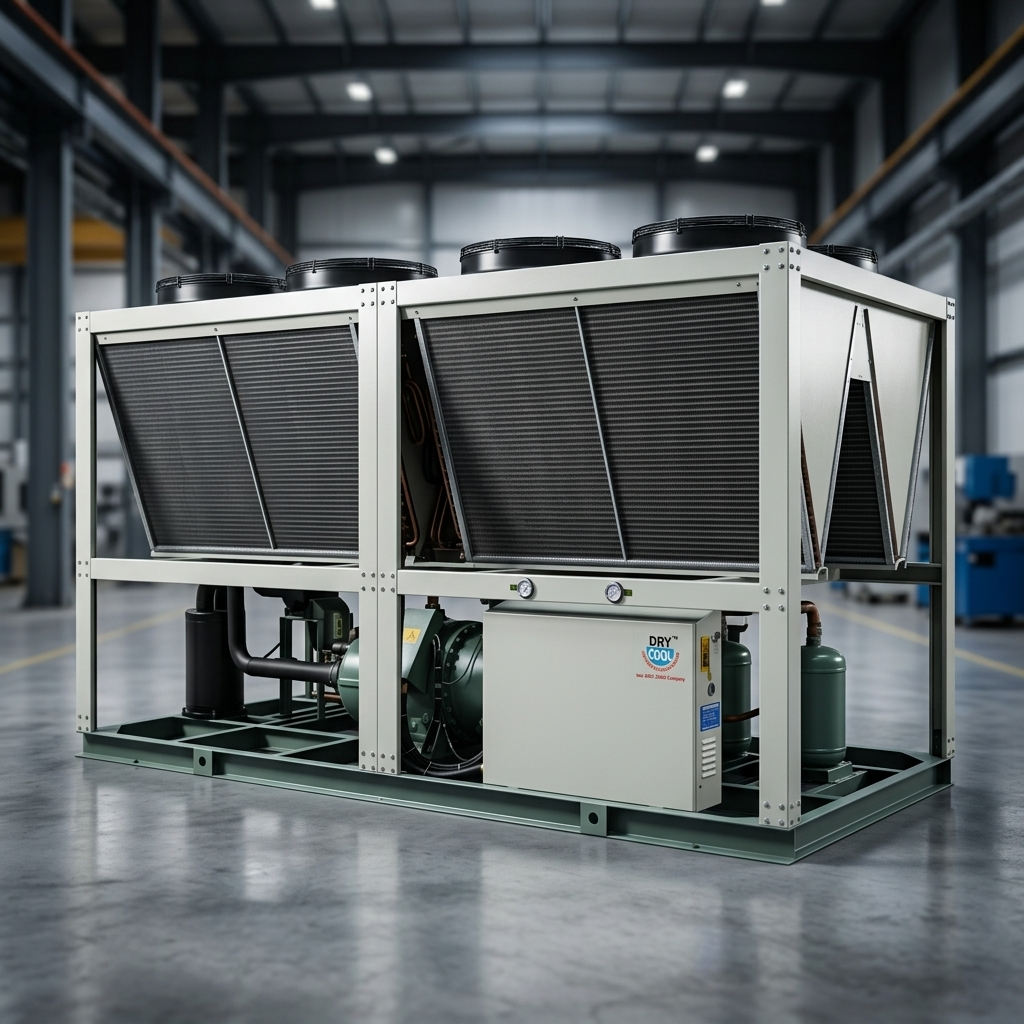

Drycool Systems Air Chillers are engineered to provide reliable, energy-efficient cooling for industrial, commercial, and process applications. Utilizing advanced vapor-compression refrigeration technology, these chillers deliver precise temperature control, reduced operating costs, and simplified maintenance. Designed for continuous operation in demanding environments, Air Chillers offer an ideal solution for facilities seeking dependable thermal management without the complexity of cooling towers and secondary water systems.

Scroll / Screw
Custom Capacity
Air Cooled
Microprocessor
Microprocessor
Controller
Air Cooled
Condenser
OVERVIEW

Built for Efficiency.
Designed for Industry.

Drycool Systems Air Chillers are designed to deliver efficient cooling performance while maintaining low operating and maintenance costs. By utilizing refrigerant-based heat transfer technology, these systems provide reliable temperature control for a wide variety of industrial processes and commercial cooling applications. The system operates through a sophisticated vapor-compression refrigeration cycle where heat is absorbed from the process fluid and rejected directly into the atmosphere. High-efficiency heat exchangers transfer thermal energy into the refrigerant, which is then compressed and circulated through oversized condenser coils for effective heat rejection. The process is continuously managed by an intelligent microprocessor controller that monitors critical operating parameters and maintains precise temperature control. Unlike traditional cooling systems that require cooling towers and extensive water treatment programs, Air Chillers provide a self-contained cooling solution with simplified installation and maintenance. Advanced energy-saving technologies, including variable frequency drives and high-efficiency condenser fans, help reduce power consumption while maintaining optimum cooling performance. The combination of robust construction, intelligent controls, and reliable refrigeration components makes Air Chillers suitable for demanding industrial environments where continuous cooling performance is critical.
Advanced vapor-compression refrigeration technology for efficient heat removal.
Microprocessor-based controls ensure precise temperature management and system monitoring.
Lower operating and maintenance costs compared to traditional cooling methods.
No cooling tower, water treatment, or secondary heat rejection loop required.
High-efficiency condenser design improves performance while reducing energy consumption.
Prominent Features
The Air Chiller utilizes a closed-loop vapor-compression refrigeration cycle where refrigerant absorbs heat from the process fluid and rejects it directly into the ambient atmosphere for efficient cooling performance.
Integrated microprocessor controls continuously monitor suction pressure, discharge pressure, and operating temperatures to maintain accurate process cooling and reliable system operation.
Variable frequency drive technology, EC condenser fan motors, and optimized compressor operation help minimize energy consumption across varying load conditions.
The air-cooled design eliminates cooling towers, condenser water pumps, and chemical treatment requirements, significantly reducing maintenance complexity and operating costs.
High-quality compressors, corrosion-resistant condenser coils, advanced diagnostics, and multiple refrigeration circuit options ensure dependable operation in demanding environments.
System Advantages

Reduced Operating Costs

Energy-efficient components and intelligent controls help lower electricity consumption and reduce long-term operating expenses.

Simplified Installation

The self-contained design requires only electrical connections and process piping, reducing installation complexity and project costs.

Improved Reliability

Advanced diagnostics, lead-lag compressor functionality, and robust component selection contribute to consistent cooling performance and longer equipment life.

Lower Maintenance Requirements

Without cooling towers or water treatment systems, maintenance needs are significantly reduced compared to water-cooled alternatives.

Key Specifications
Cooling Capacity
Custom Capacity Available
Compressor Type
Scroll / Screw Compressor
Controller Type
Microprocessor Controller
Condenser Type
Air Cooled
Refrigeration Cycle
Vapor Compression
Heat Exchanger Type
Brazed Plate or Shell & Tube
Refrigerant Options
R-410A / R-134A
Condenser Construction
Copper Tubes with Aluminum Fins
Fan Type
Axial Flow Fans
Ambient Operating Temperature
Up to 40°C
Temperature Control Accuracy
±1°F
Energy Efficiency Feature
Variable Frequency Drive Technology
Need Help?

Need help selecting
the right chiller?

Our experts will help you choose the right capacity based on your application, cooling load, and operating conditions.
